The overloaded ggplot method

The standard ggplot function expects a data.frame for its first argument, data. If ggplot is called with an FLR object, a conversion to data.frame takes place, and any other arguments provided get passed to the original ggplot(). The conversion makes use of as.data.frame¹ methods defined in FLCore, with the cohort argument set to TRUE.

As an example, the FLStock of ple4 is a list containing a number of elements.

# summary of the FLStock
summary(ple4)

An object of class "FLStock"

Name: PLE
Description: Plaice in IV. ICES WGNSSK 2018. FLAAP
Quant: age
Dims:  age  year    unit    season  area    iter
    10  61  1   1   1   1

Range:  min max pgroup  minyear maxyear minfbar maxfbar
    1   10  10  1957    2017    2   6

catch         : [ 1 61 1 1 1 1 ], units =  t
catch.n       : [ 10 61 1 1 1 1 ], units =  1000
catch.wt      : [ 10 61 1 1 1 1 ], units =  kg
discards      : [ 1 61 1 1 1 1 ], units =  t
discards.n    : [ 10 61 1 1 1 1 ], units =  1000
discards.wt   : [ 10 61 1 1 1 1 ], units =  kg
landings      : [ 1 61 1 1 1 1 ], units =  t
landings.n    : [ 10 61 1 1 1 1 ], units =  1000
landings.wt   : [ 10 61 1 1 1 1 ], units =  kg
stock         : [ 1 61 1 1 1 1 ], units =  t
stock.n       : [ 10 61 1 1 1 1 ], units =  1000
stock.wt      : [ 10 61 1 1 1 1 ], units =  kg
m             : [ 10 61 1 1 1 1 ], units =  m
mat           : [ 10 61 1 1 1 1 ], units =
harvest       : [ 10 61 1 1 1 1 ], units =  f
harvest.spwn  : [ 10 61 1 1 1 1 ], units =
m.spwn        : [ 10 61 1 1 1 1 ], units =

By calling as.data.frame() on an FLStock, the list is collapsed to a dataframe that than can be plotted by selecting the right dimensions in terms of slot, age, iter, etc.. :

head(as.data.frame(ple4))

FLQuant

Passing an FLQuant object to ggplot, we can specify the names of the dimensions as variables in the plot, where data refers to the column storing the actual numeric values. For example, to plot data (the catch slot from ple4 in this case) against year, we could use

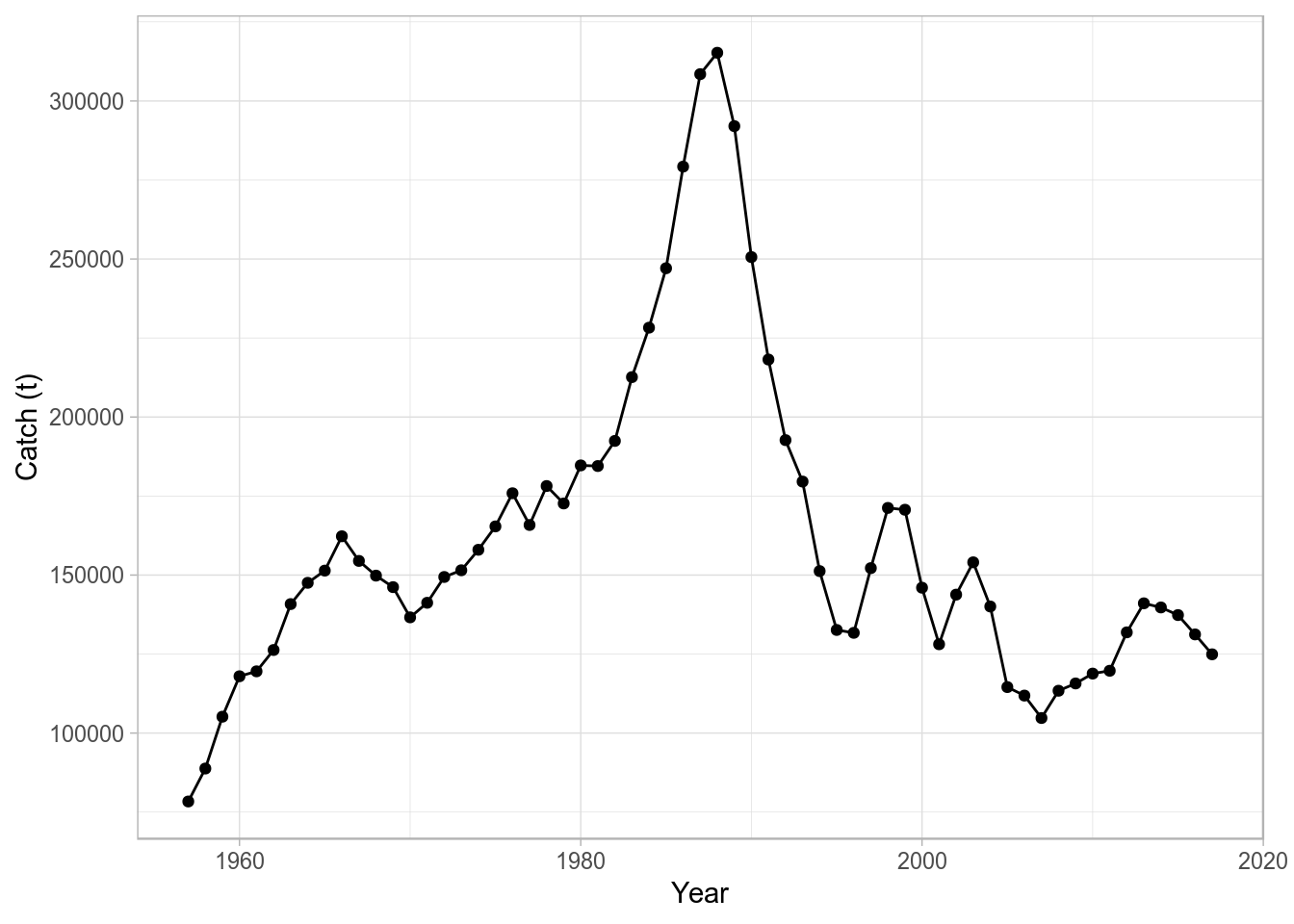

ggplot(data = catch(ple4), aes(year, data)) + geom_point() + geom_line() + ylab("Catch (t)") + xlab("Year")

where we pass directly an FLQuant object for the data argument in ggplot, specify an aesthetic mapping (aes(year, data)), and add both points (geom_point()) and lines (geom_line()), together with the appropriate axis labels.

FLQuants

Similarly, we can pass on to ggplot an object of class FLQuants, and the conversion to data.frame will make use of the corresponding method ². A new column gives the name of each FLQuant in the list, called qname. We can then use it to, for example, define a call to facet_wrap() to obtain a separate subplot per element.

ggplot(data=FLQuants(Yield=catch(ple4), SSB=ssb(ple4), F=fbar(ple4)), aes(year, data)) +
  geom_line() + facet_wrap(~qname, scales="free_y", nrow=3) + labs(x="", y="")

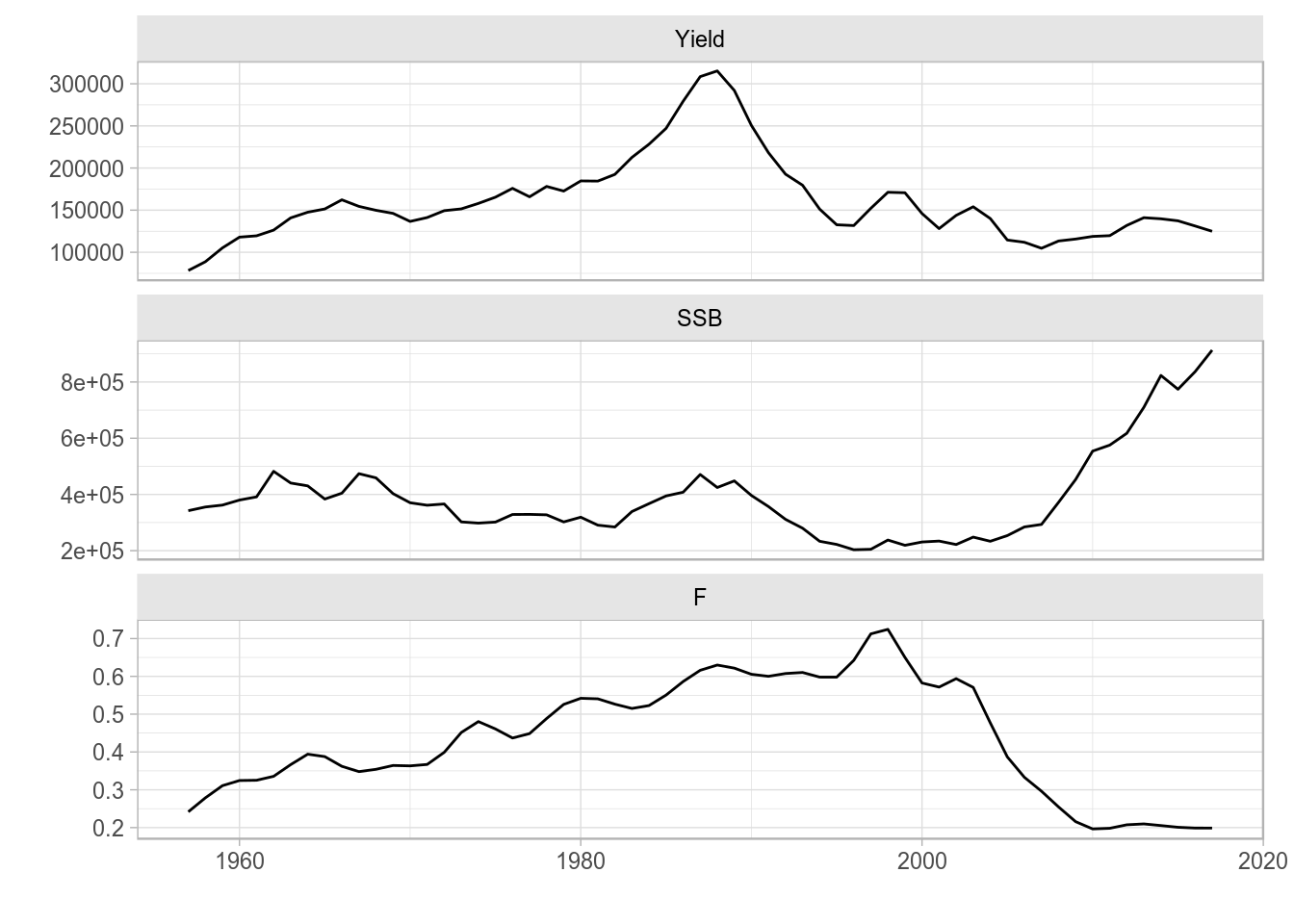

Facet wrap line plot of time series from an FLQuants object.

This procedure is particularly useful when plotting information from objects with multiple FLQuant slots, because a subset of slots can be selected for plotting. Furthermore, transformations or computations can even be carried out in the call to the FLQuants() creator.

FLStock

A whole FLStock object can also be used as argument to ggplot(), even if the heterogeneity in scale of the data contained makes the plot slightly confusing. For example, we can plot time-series of every FLQuant slot in ple4, with colour applied to different age dimensions, by calling

ggplot(data=ple4, aes(year, data)) + geom_line(aes(group=age, colour=factor(age))) +
  facet_wrap(~slot, scales="free", nrow=3) + labs(x="", y="") + theme(legend.position = "none")

Overall ggplot of an FLStock object, faceted by slot.

FLQuant

The standard plot() method for FLQuant defined in ggplotFL uses the faceting capabilities of ggplot to better present some of the multiple dimensions of these objects. If any dimension, other than year and iter, has length greater than one, it will be added to the formula used by facet_grid. For example, an FLQuant with dimensions

dim(catch.n(ple4))

[1] 10 61  1  1  1  1

will generate a plot with a time series by year of the data it contains, with horizontal facets for the only dimension, other than year, of length greater than 1 (here age).

plot(catch.n(ple4))

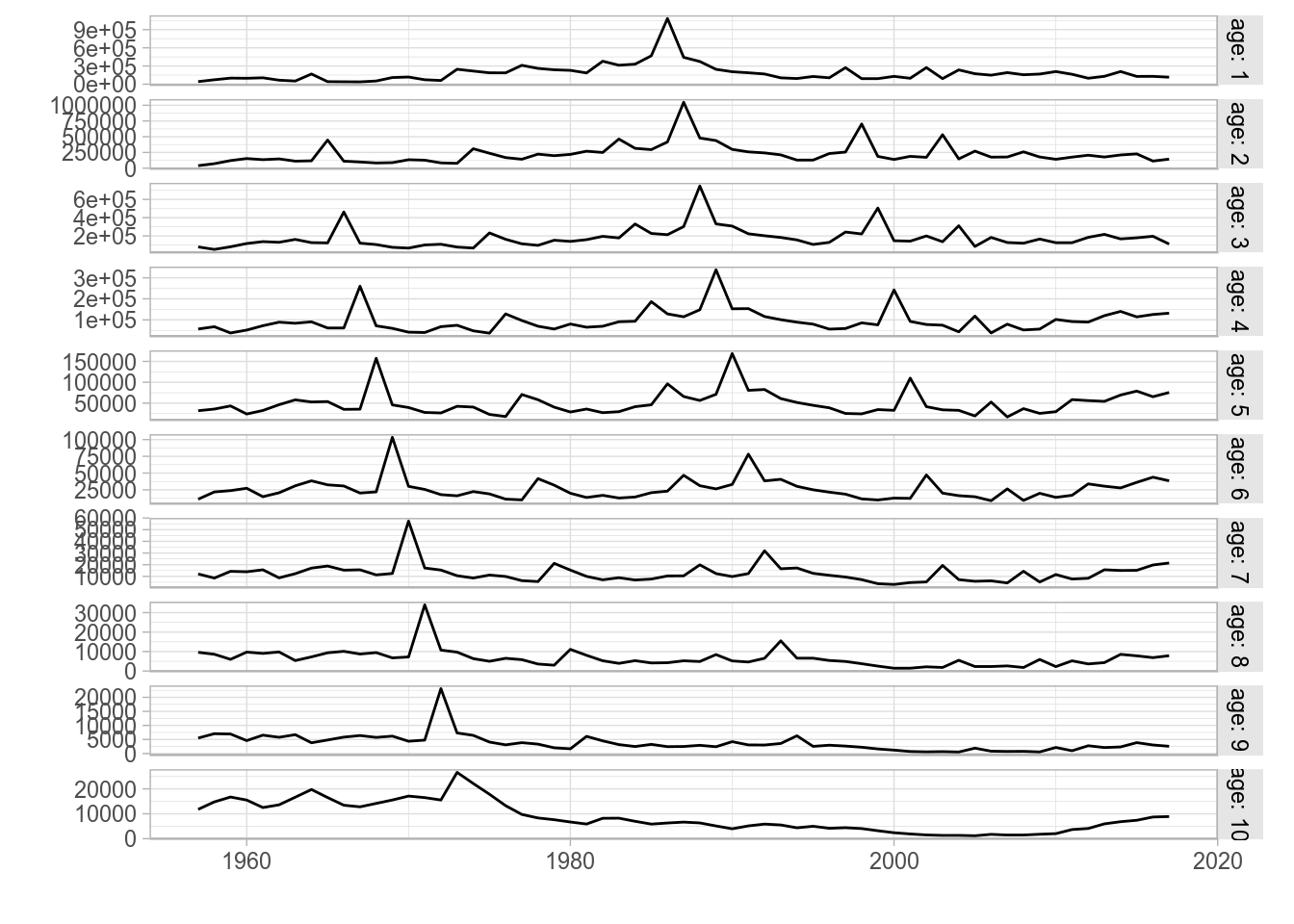

Standard ggplot2-based plot for an FLQuant object with multiple years and ages.

For FLQuant objects with iterations, the plot method will calculate, by default, the 50% (median), 10%, 25%, 75% and 90% quantiles, to be plotted as a solid line (50%), a dotted line (10%, 90%) and a coloured ribbon (25%-75%).

plot(rlnorm(200, fbar(ple4), 0.15))

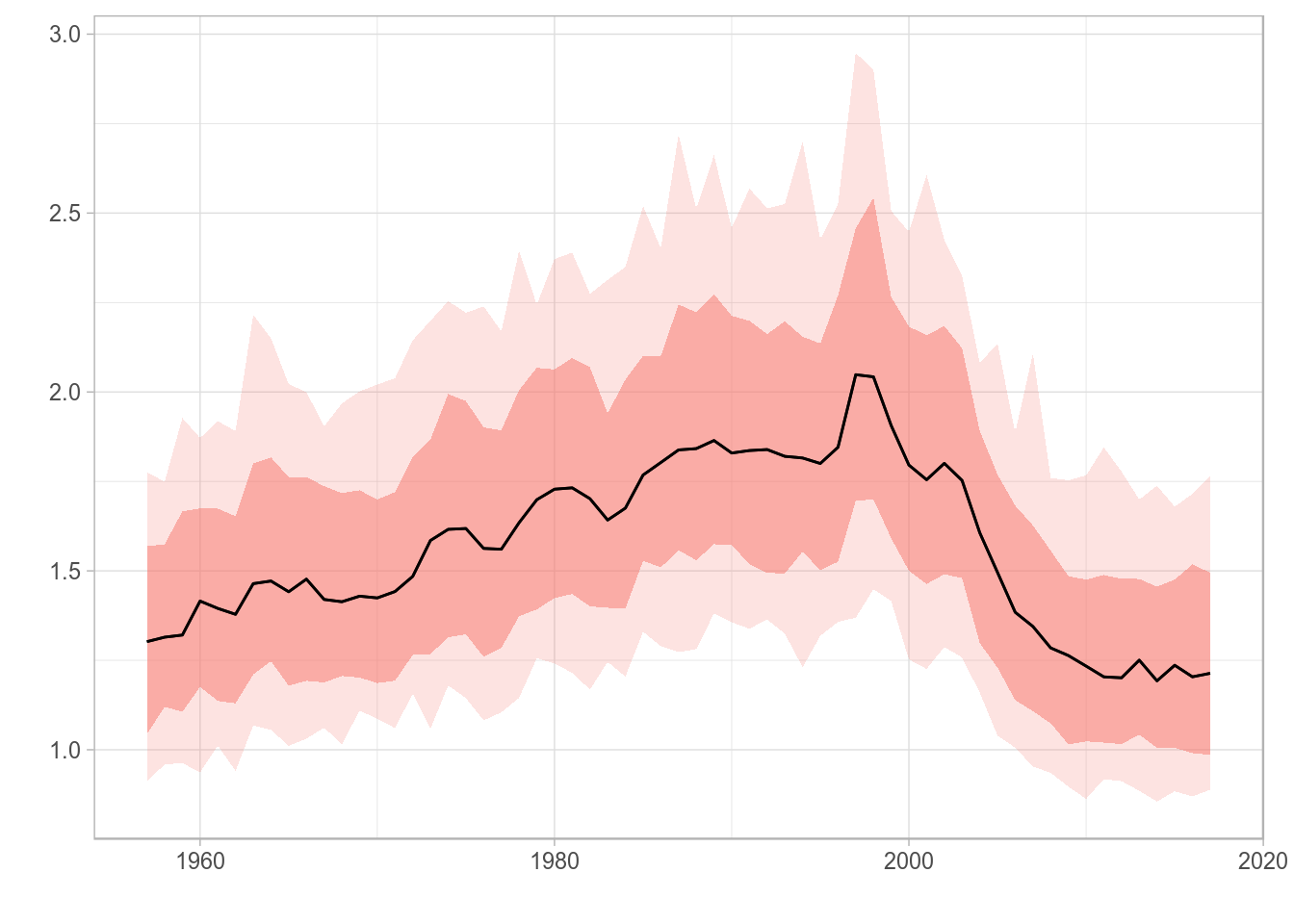

Standard ggplot2-based plot for an FLQuant object with multiple iterations.

Different quantiles can be specified using the probs arguments, and the alpha transparency of the ribbon will be proportional to the probability value. A vector of odd length must be passed, and the central point should be 0.50 so the central tendency line represents the median. The most extreme quantiles will be plotted as dotted lines, while all others will show up as ribbons.

plot(rlnorm(200, fbar(ple4), 0.15), probs=c(0.05, 0.10, 0.25, 0.50, 0.75, 0.90, 0.95))

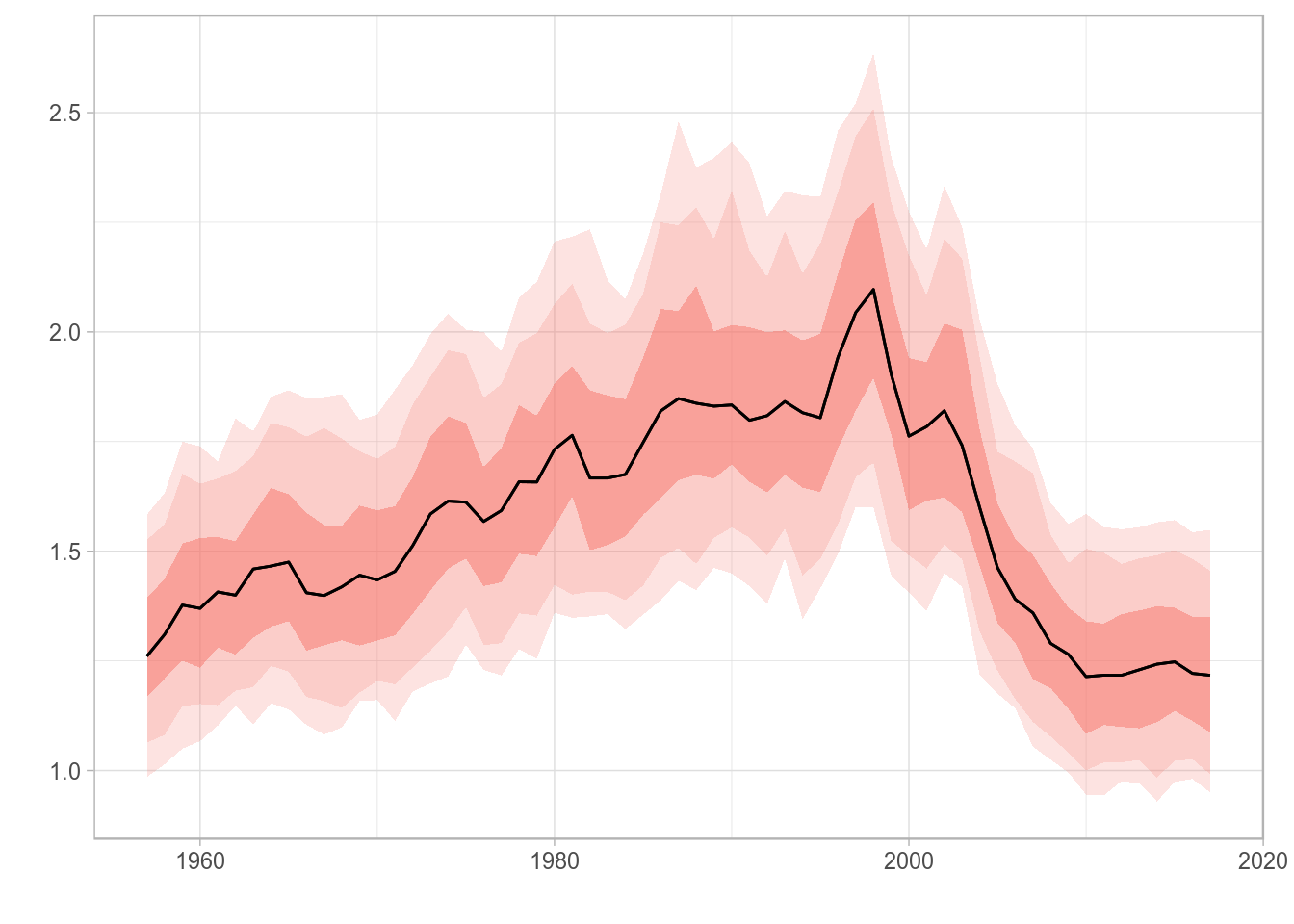

Standard ggplot2-based plot for an FLQuant object with multiple iterations and user-specified quantiles.

FLQuants

The plot method for FLQuants will now by default show each object in a horizontal panel, with independent scales, by using facet_grid. Objects with iterations will have, as with plot for FLQuant, their median, 10%, 25%, 75% and 90% quantiles shown as a black line and red ribbons with different levels of transparency, respectively.

fqs <- FLQuants(F = rlnorm(200, fbar(ple4), 0.15), SSB = ssb(ple4), Rec = rec(ple4), Catch = catch(ple4))
plot(fqs)

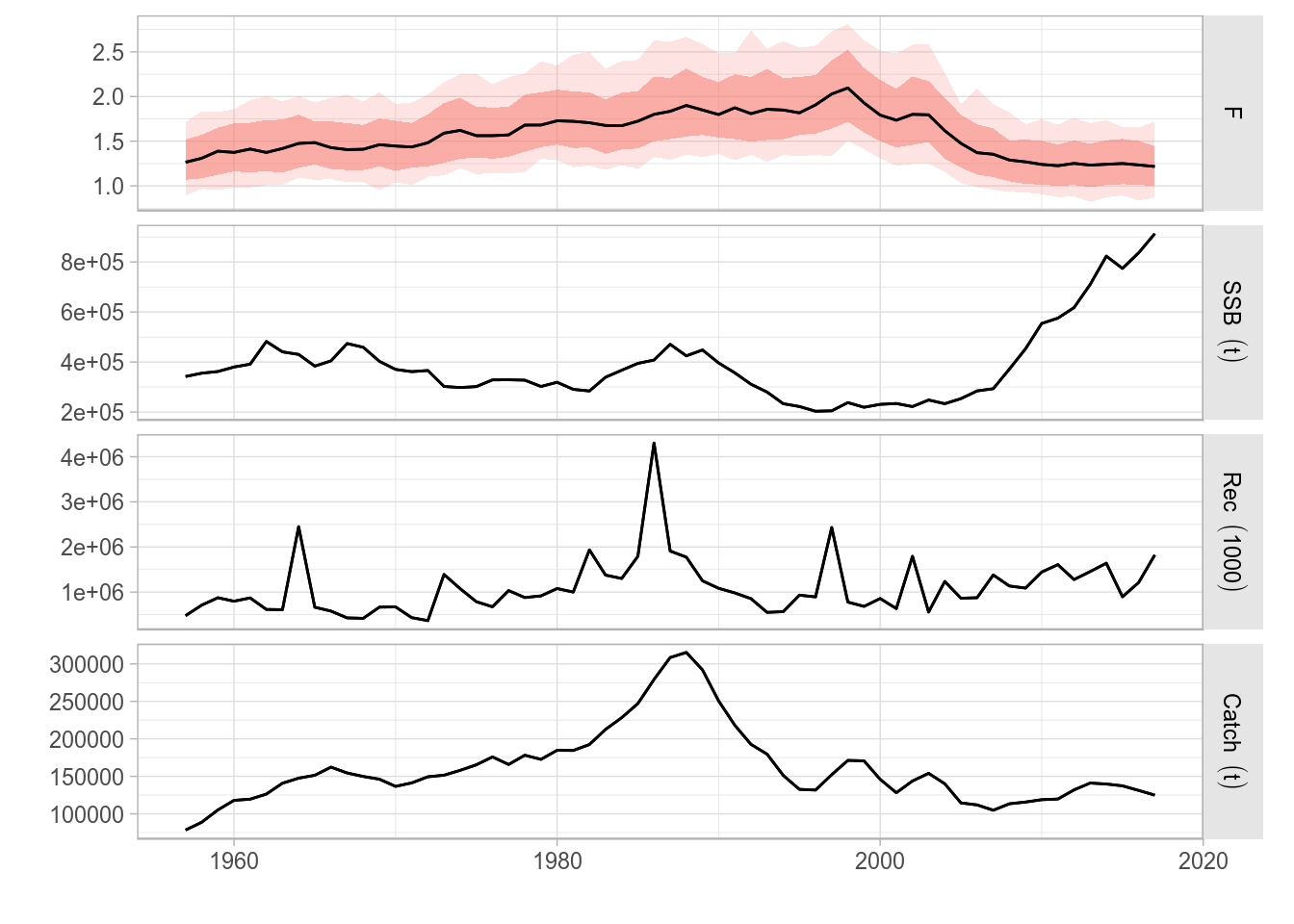

Standard ggplot2-based plot for an FLQuants object with multiple iterations, and consisting of four elements.

Plots of multiple FLQuant objects use by default facet_grid with multiple plots stacked on top of each other. To have the plots on a grid, you can add a call to facet_wrap to change it. For example, here we have a 2x2 grid

fqs <- FLQuants(F = rlnorm(200, fbar(ple4), 0.15), SSB = ssb(ple4), Rec = rec(ple4), Catch = catch(ple4))
plot(fqs) + facet_wrap(~qname, scales="free")

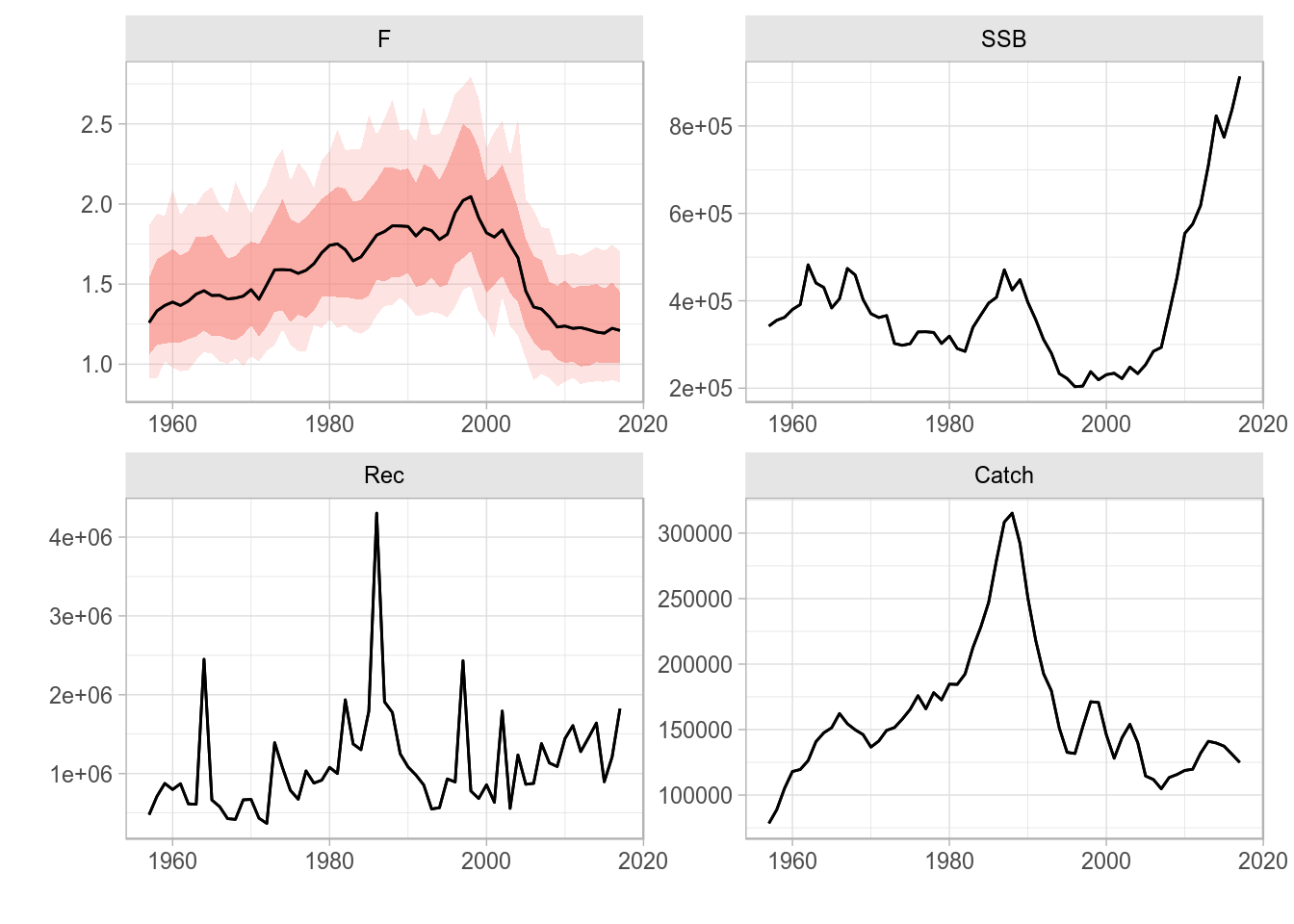

Wrap-based ggplot2-based plot for an FLQuants object with multiple iterations, and consisting of four elements.

FLStock

The ggplotFL version of the standard plot for the FLStock class contains the time series of recruitment (obtained by calling rec()), SSB (ssb()), catch (catch()), and fishing mortality or harvest for selected ages(fbar()). The four panels are now arranged in a 4-row matrix to better display the trends in the time series.

plot(ple4)

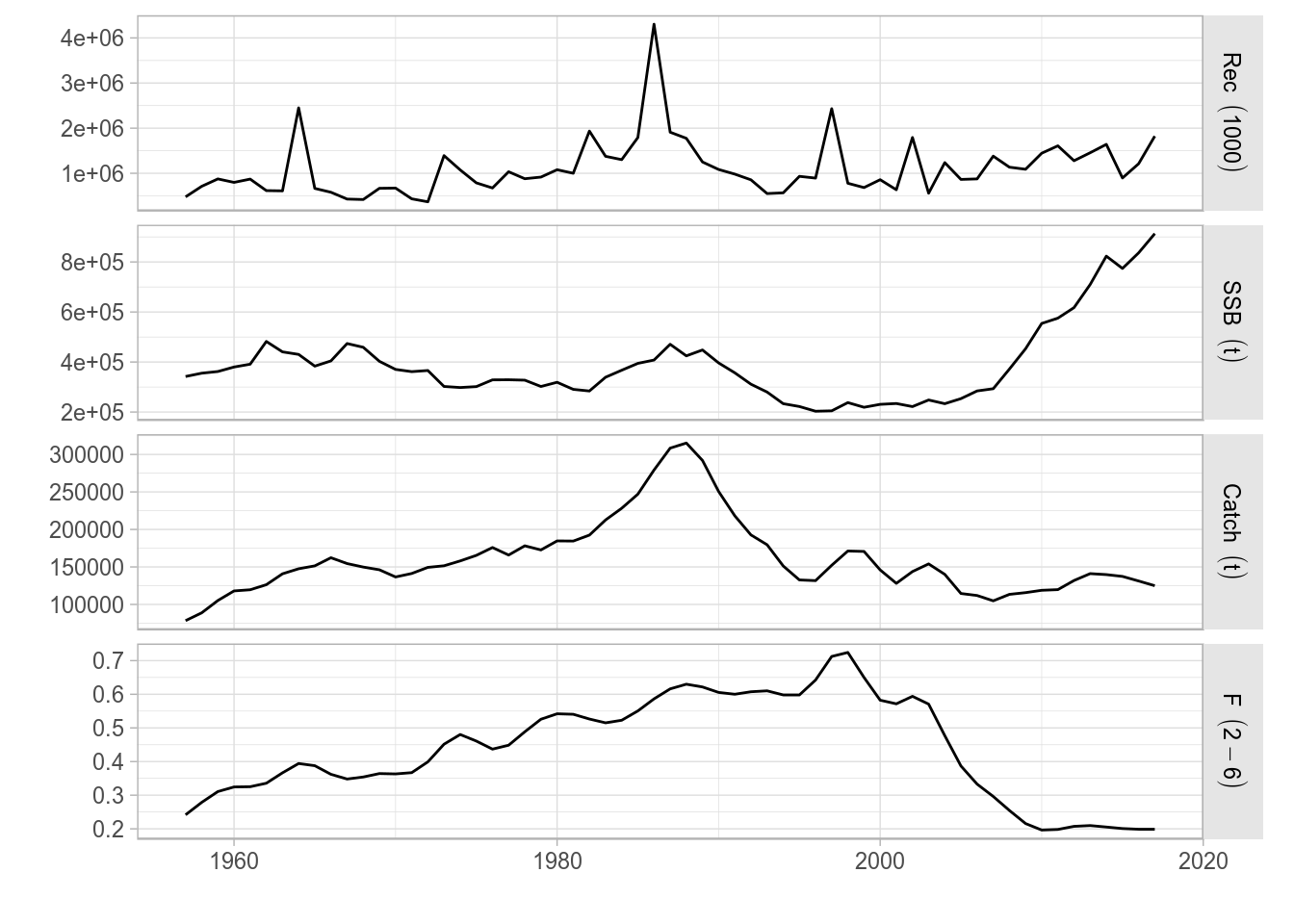

A ggplot2 version of the standard plot() for FLStock, as applied to ple4

FLStocks

Similarly, the standard plot() method for the FLStocks class now relies on ggplot. For example, we can create an example FLStocks object by splitting the female and male units of ple4sex and adding them as separate elements in the list. A call to plot() would give us the corresponding plot. Remember the object returned by ggplot can always be assigned to a variable in the workspace and modified as required (see examples below).

plot(FLStocks(Male=ple4sex[,,'male'], Female=ple4sex[,,'female'])) + theme(legend.position="top")

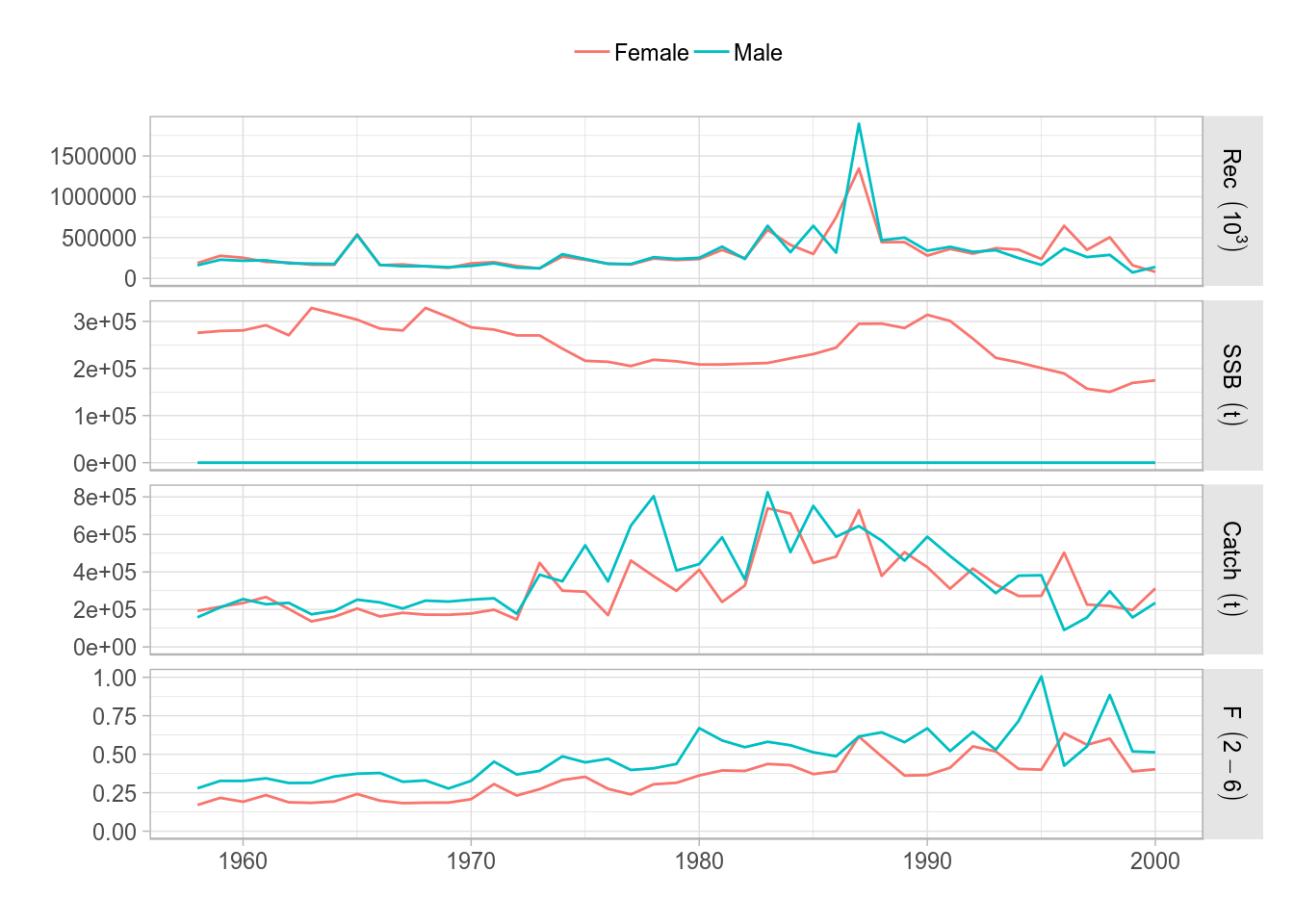

ggplot2 version of the standard plot() for FLStocks, as applied to the sex-separated FLStock object ple4sex

FLSR

The ggplotFL version of the class plot for FLSR contains the same six panels as before:

1. stock-recruit data, fitted model and lowess smoother,
2. residuals by year,
3. lag 1-correlated residuals,
4. residuals by SSB,
5. residuals qqplot, and
6. residuals by fitted values.

Blue lines are lowess smoothers, to better visualize trends in the data shown.

plot(nsher)

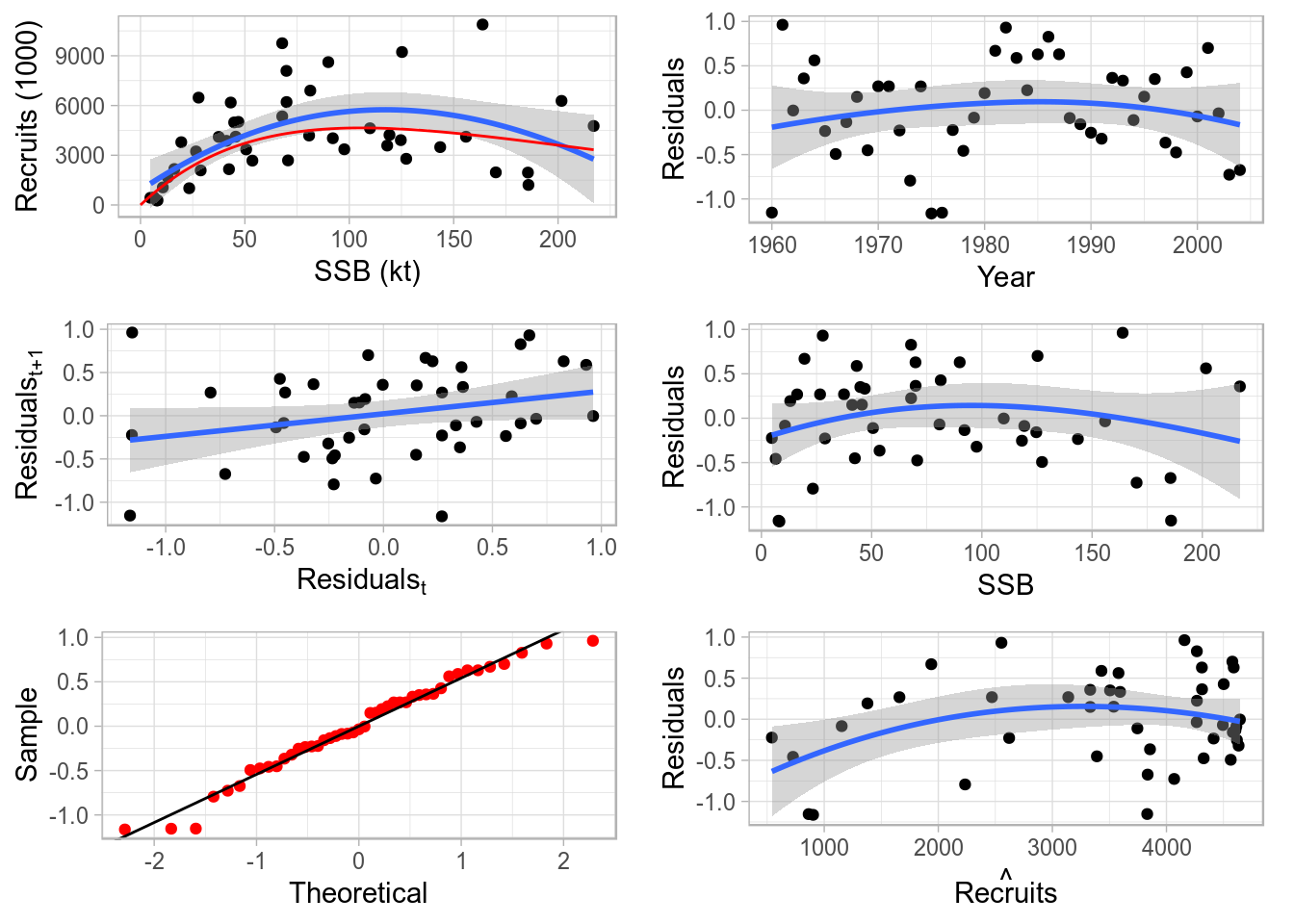

Standard ggplot2-based plot for an object of class FLSR.

FLSRs

A class plot also exists for FLSRs objects, lists with FLSR elements. The comparison shown involves only the model fit across the different model functions or formulations, but not the residuals diagnostics available for FLSR. The default legend contains the formula of each of the fitted models and the parameter values (or the median if multiple iterations exist).

srs <- FLSRs(sapply(c('ricker', 'bevholt'), function(x) {
         y <- nsher
         model(y) <- x
         return(fmle(y))}))

plot(srs)

Standard ggplot2-based plot for an FLSRs object, using default legend labels.

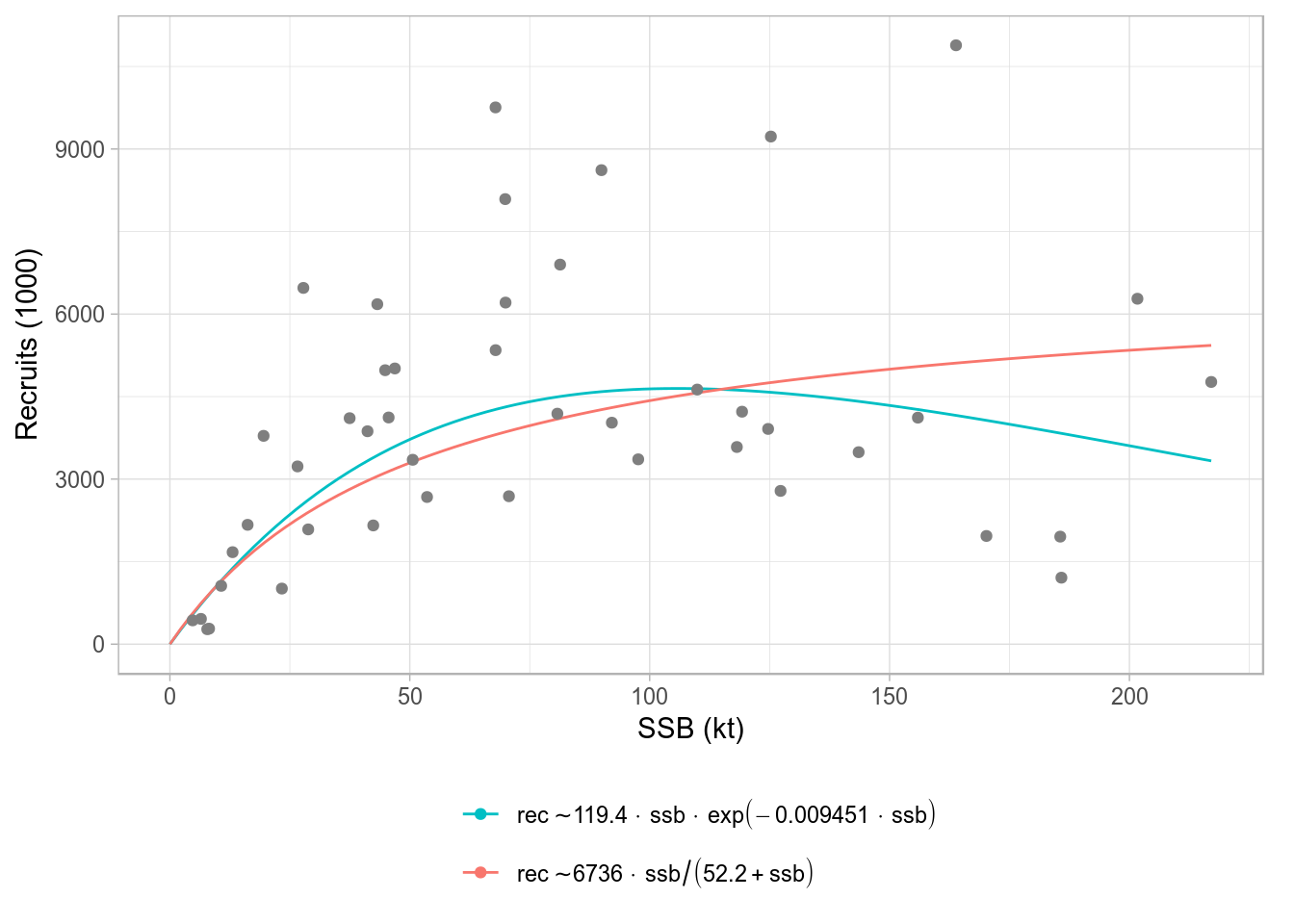

An alternative labeller function exists (modlabel) that returns the name of the SR model function and the parameter values, by using the legend_label argument.

plot(srs, legend_label=modlabel)

Standard ggplot2-based plot for an FLSRs object, using model names as legend labels.

As is common in ggplot2, labels can be specified directly, overwriting those included in the method. You should ignore the warning about scale for color being replaced.

plot(srs) + scale_color_discrete(name="SR models", breaks=c('ricker', 'bevholt'),
labels=c("Ricker", "Beverton & Holt"))

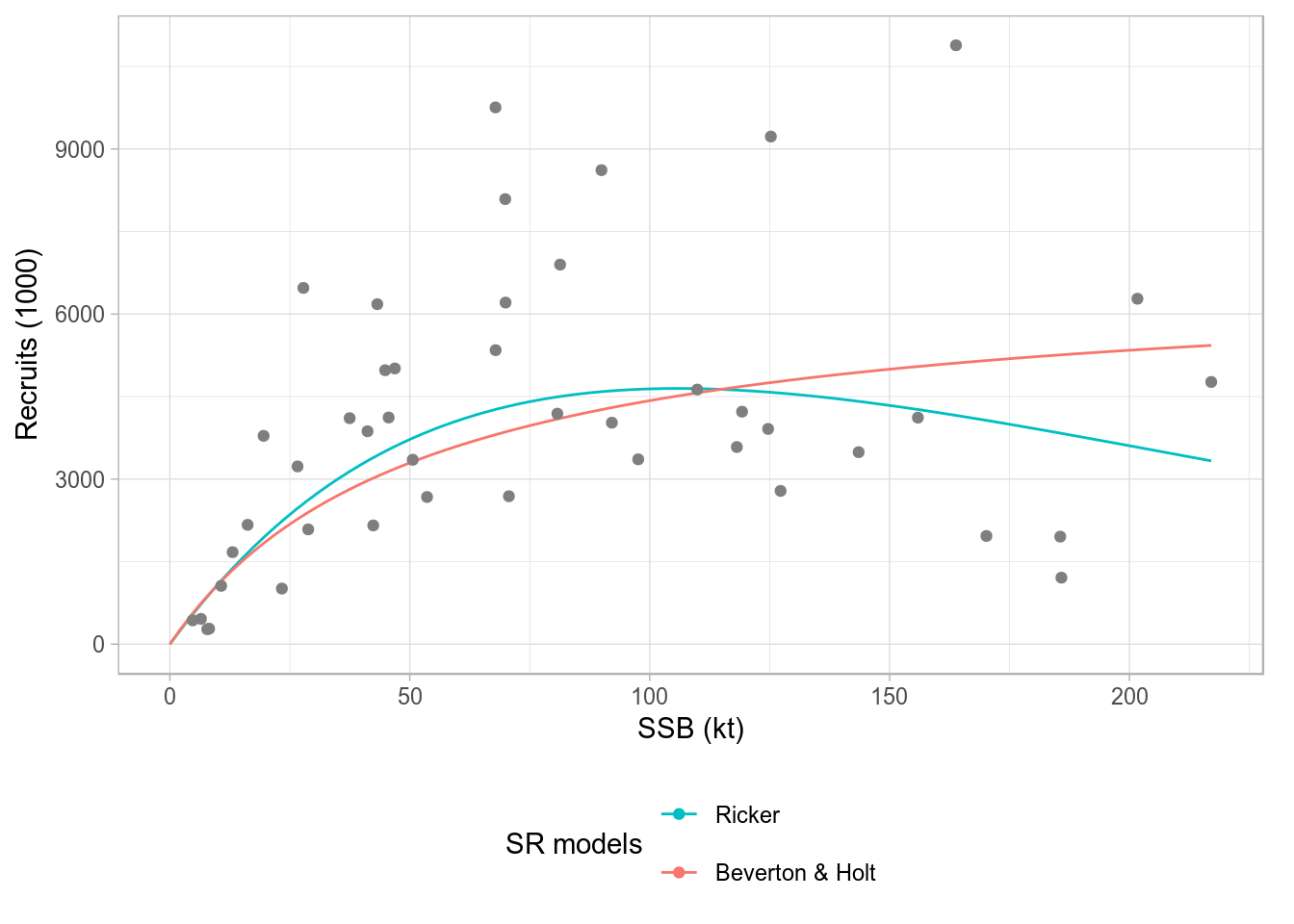

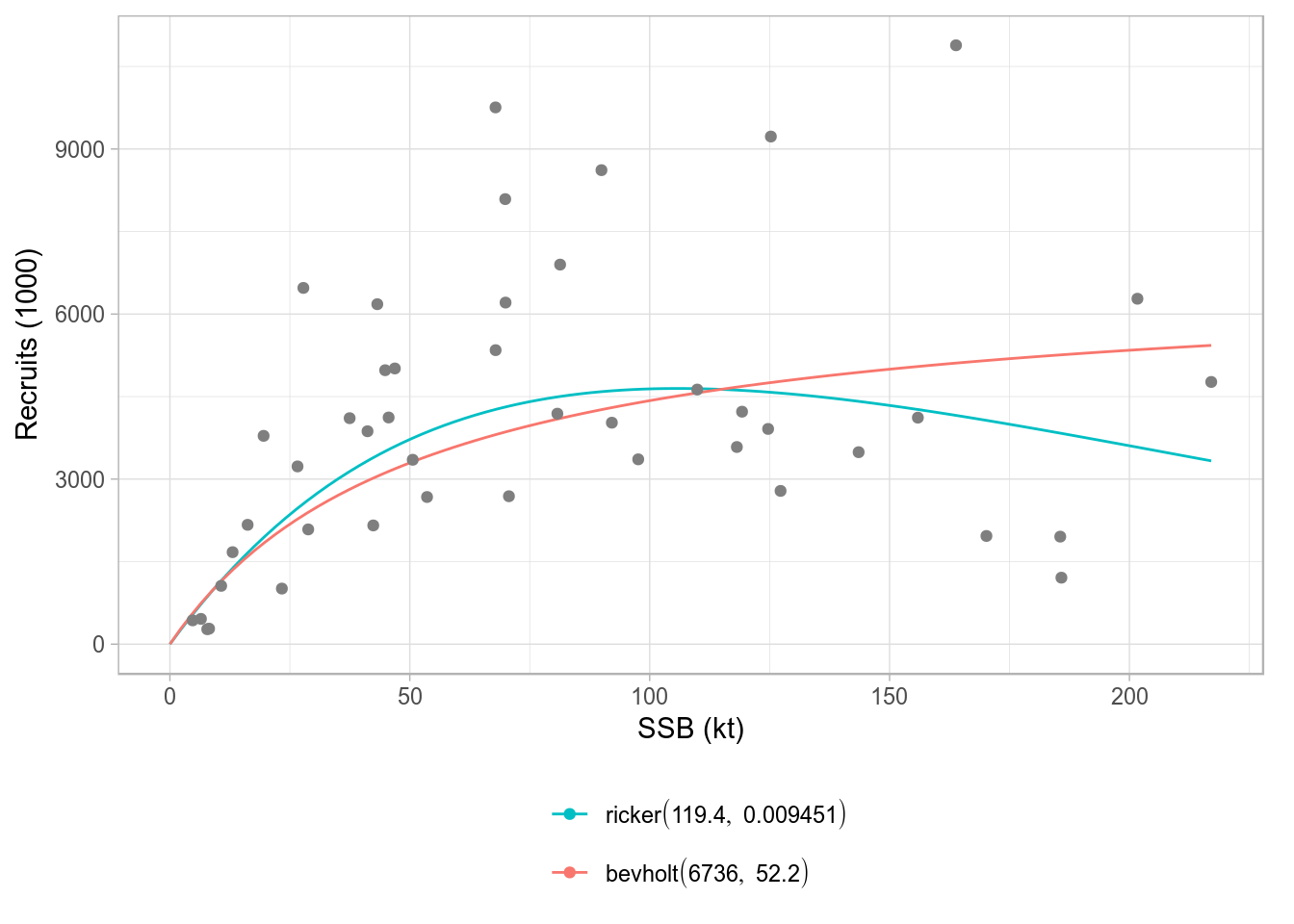

Standard ggplot2-based plot for an FLSRs object, using model names as legend labels.

Example: plot quantiles of a simulation

To have full control over a plot of the median (or mean) and the confidence or probability intervals of a simulated or randomized time series, i.e. an FLQuant object with iters, we need to arrange the different values computed from the object in separate columns of a data.frame.

If we start with some random FLQuant object, such as

fla <- rlnorm(100, FLQuant(exp(cumsum(rnorm(25, 0, 0.1)))), 0.1)
ggplot(fla, aes(factor(year), data)) + geom_boxplot() + xlab("")

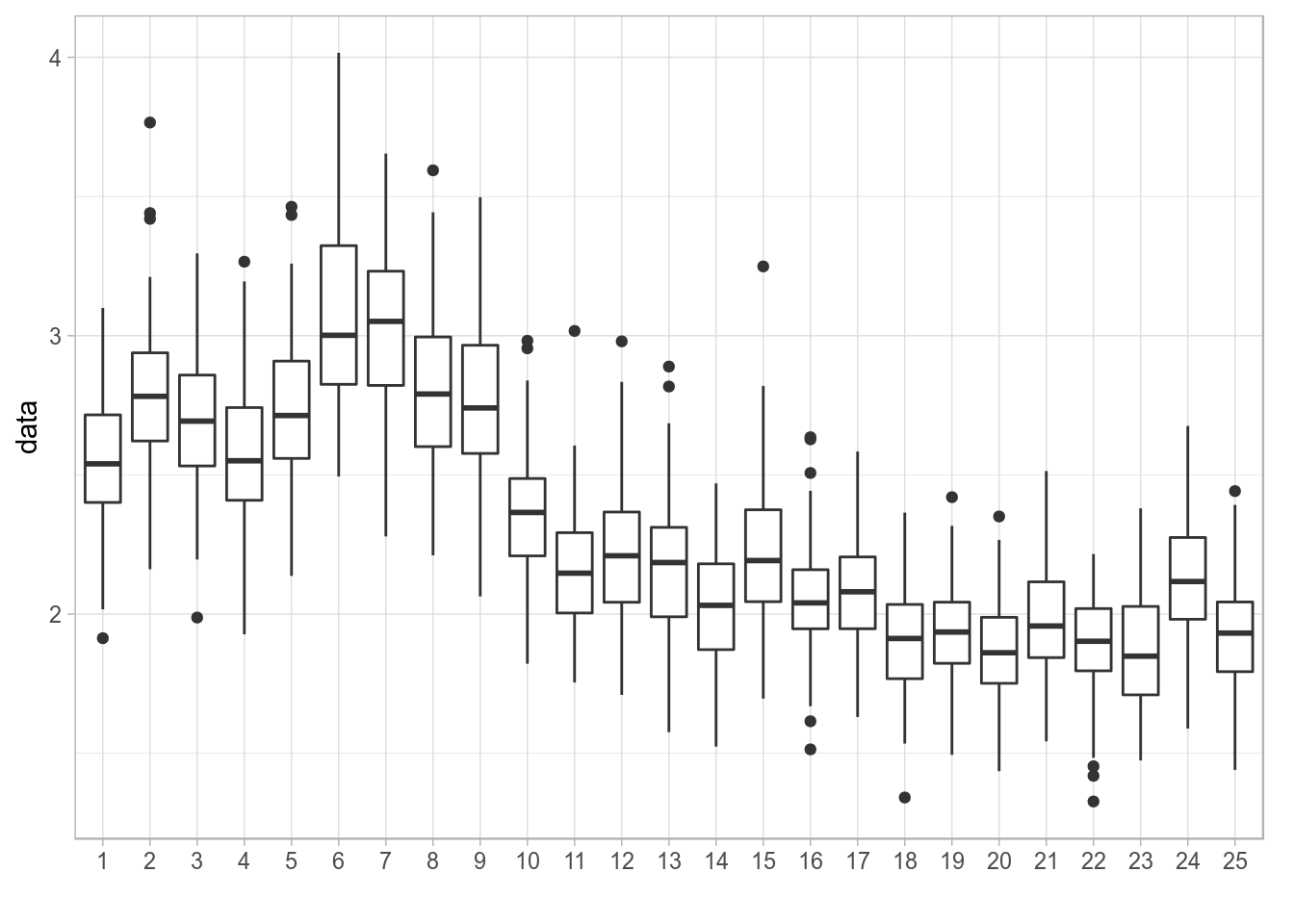

Distribution of values of a simulated time series plotted using geom_boxplot()

We can first compute the necessary statistics on the object itself, as these operations are very efficient on an array. quantile() on an FLQuant will return the specified quantiles along the iter dimension. Let’s extract the 10th, 25th, 50th, 75th and 90th quantiles.

flq <- quantile(fla, c(0.10, 0.25, 0.50, 0.75, 0.90))

The object can now be coerced to a data.frame and inspected to see how the 100 iters have now been turned into the five requested quantiles in the iter column

fdf <- as.data.frame(flq, drop=TRUE)
head(fdf, 3)

The long-format data.frame can be reshaped into a wide-format one so that we can instruct ggplot to use the quantiles, now in separate columns, to provide limits for the shaded areas in geom_ribbon. To do this we can use reshape, as follows

fdw <- reshape(fdf, timevar = "iter", idvar = c("year"), direction = "wide")

This creates a wide data.frame in which the iter column is spread into five columns named as the levels of its conversion into factor

levels(fdf[,'iter'])

[1] "10%" "25%" "50%" "75%" "90%"

We can now use those five quantile columns when plotting shaded areas using geom_ribbon. Please note that the column names returned by quantile() need to be quoted using backticks.

p <- ggplot(data=fdw, aes(x=year, y=`data.50%`)) +
geom_ribbon(aes(x=year, ymin = `data.10%`, ymax = `data.90%`), fill="red", alpha = .15) +
geom_ribbon(aes(x=year, ymin = `data.25%`, ymax = `data.75%`), fill="red", alpha = .25) +
geom_line() + ylab("data")
print(p)

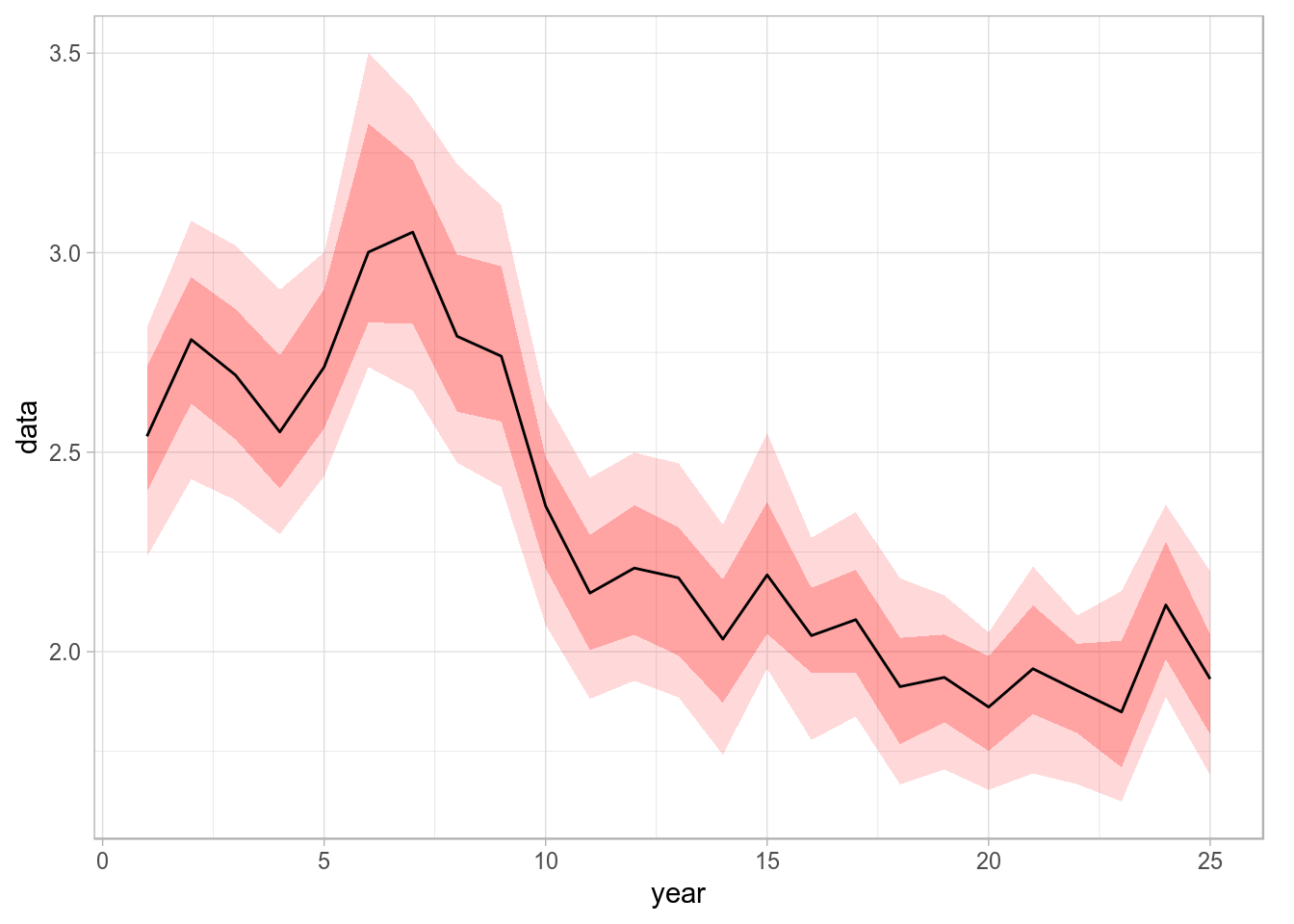

Time series with 75% and 90% credibility intervals plotted using geom_ribbon.

Assigning the result of the call to ggplot() to a variable, as done above, will allow us to reuse the plot later on by modifying or adding components.

Example: Simulation trajectories plot

If the result of a stochastic simulation is summarised by showing credibility intervals, it is very informative to plot as well some of the individual iterations (in this case we want iteration 1, 4 and 23) as a way of showing the fact that individual trajectories are generally not as smooth as, for example, the median shown in the figure above.

fds  <- as.data.frame(iter(fla, c(1, 4, 23)))
p + geom_line(data=fds, aes(year, data, colour=iter), size=0.5) +
  theme(legend.position = "none")

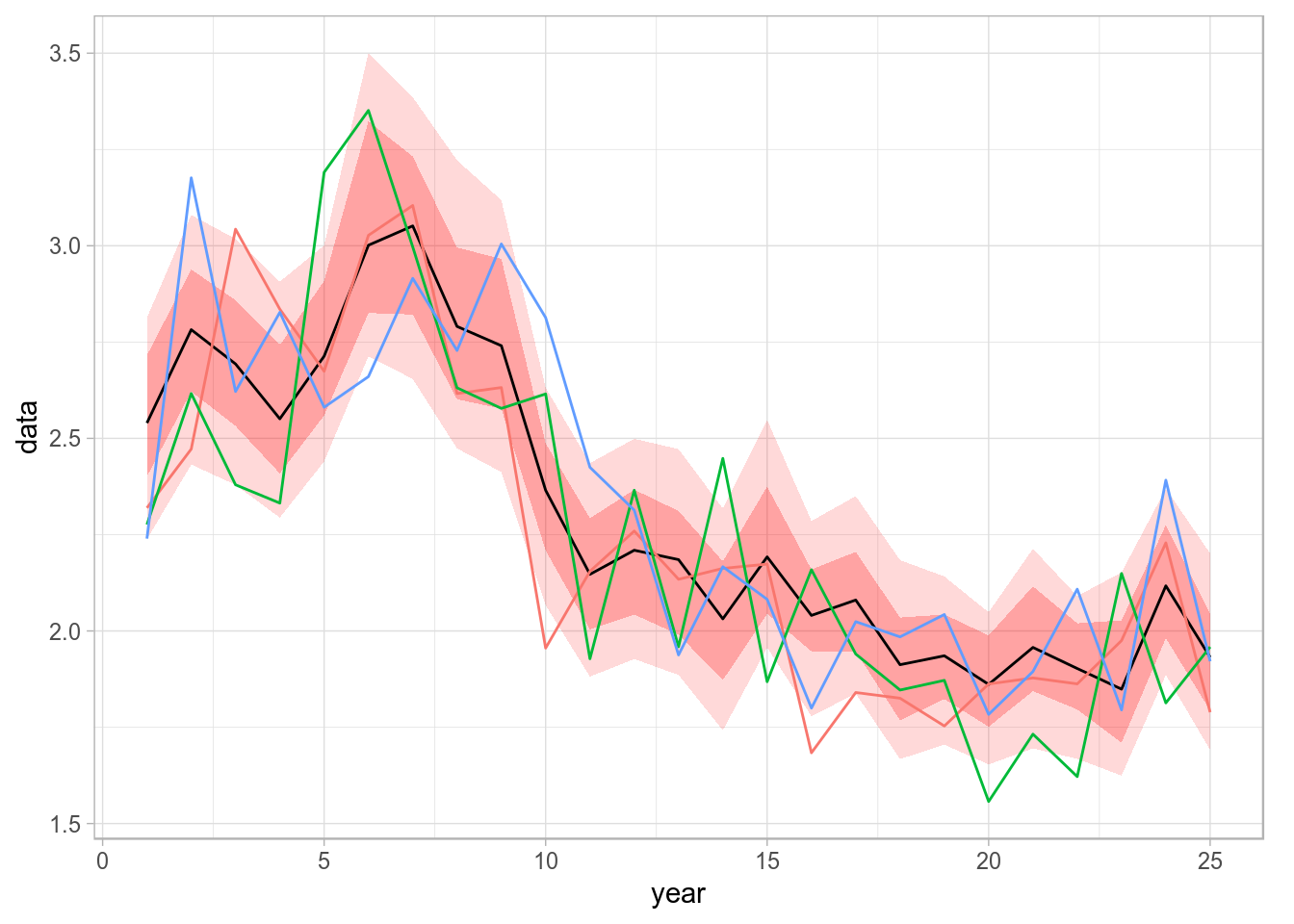

Spaghetti plot of a stochastic simulation, by calling geom_line on top of the stored ribbon plot.

This is easy to do in ggplot2 by adding an extra element on top of the previous plot, stored in the p object from the code above.

Example: Using FLQuants

Coercion using as.data.frame, combined with the use of reshape, or dcast and melt (from the reshape2 package⁴), provides the FLR user with the tools required to create a large range of ggplots from any FLR object.

TODO: ADD text & example

Example: Bubble plots

Bubble plots allow us to represent a third continuous dimension in a scatter plot by sizing points according the value of a variable. For example, catch in numbers by age and year can be visualised using

ggplot(catch.n(ple4), aes(year, as.factor(age), size=data)) + geom_point(shape=21) +
  scale_size(range = c(1, 20)) + ylab("age") + theme(legend.position = "none")

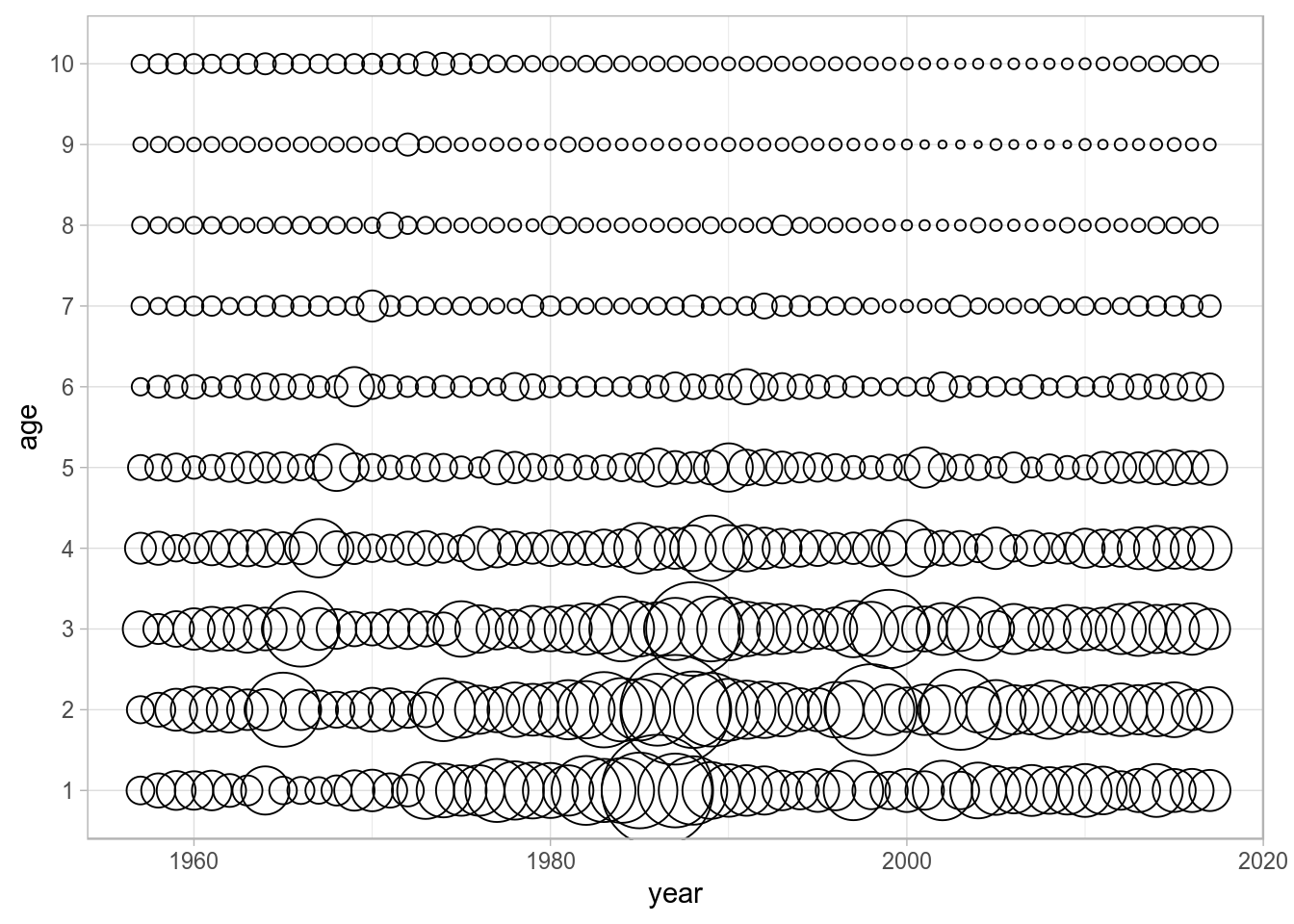

Bubble plot of catch by age in numbners for North Sea plaice.

where data is used to size the bubbles in the call to aes(). This single line of code replaces the functionality offered by the lattice-based bubbles() method available in FLCore.

Example: Residual plots

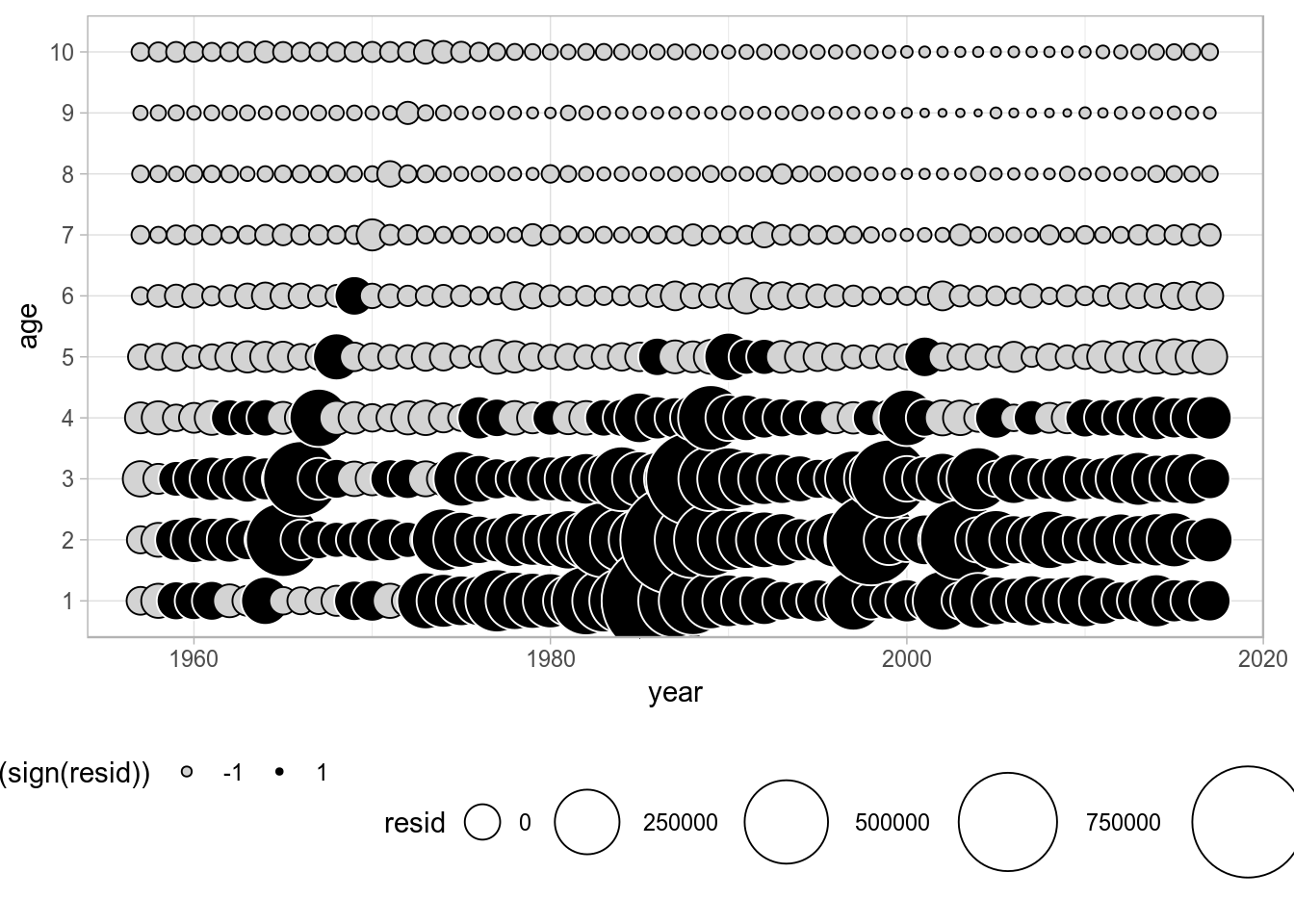

Residuals plots can be built, for example, for the numbers-at-age in the catch FLQuant by subtraction of the computed mean from the data. Then bubble plots can be built in ggplot, with size proportional to the residual and conditional colour coding for positive/negative residuals.

dat <- as.data.frame(catch.n(ple4))
dat$resid <- dat$data - mean(dat$data)
ggplot(dat, aes(year, as.factor(age), size=resid)) +
  geom_point(shape=21, aes(colour=factor(sign(resid)), fill=factor(sign(resid)))) +
  scale_size(range = c(1, 20)) +
  scale_colour_manual(values=c("black", "white")) +
  scale_fill_manual(values=c("lightgray", "black")) +
  ylab("age")
